Exploring gRPC Load Balancing: Gateway, Service Mesh, and xDS with Go
As microservices architectures continue to gain popularity, efficient load balancing mechanisms have become essential for ensuring high availability and performance. When it comes to gRPC, three primary methods are commonly used for load balancing: Gateway, Service Mesh, and xDS. In this post, we’ll dive into each of these methods, compare their advantages and disadvantages, and focus on implementing xDS load balancing using Go.
Gateway
A gateway is an API management tool that sits between clients and backend services. It acts as a reverse proxy to forward client requests to appropriate backend services based on various load balancing algorithms.
Key Features
- Centralized Control: Simplifies management by centralizing the entry point for client requests.
- Security: Enhances security by providing a single point to enforce policies and monitor traffic.
- Scalability: Easily scales by adding more gateway instances.
Pros
- Simplified client-side configuration.
- Centralized point for enforcing security and policies.
- Easy to monitor and manage traffic.
Cons
- Single point of failure if not properly managed.
- May introduce latency due to additional network hops.
Service Mesh

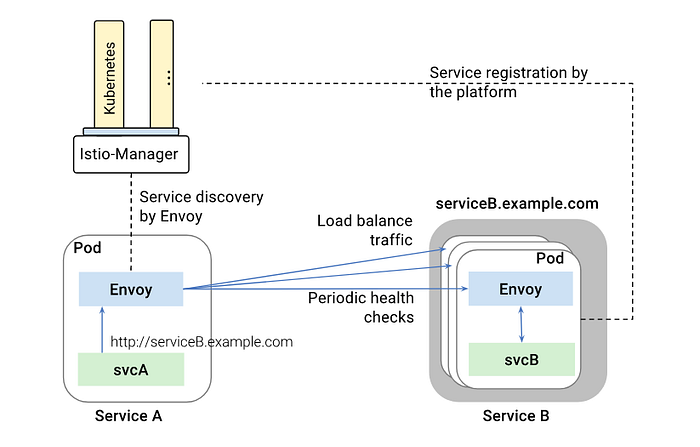

A service mesh is a dedicated infrastructure layer that handles communication between microservices. It abstracts the complexity of service-to-service communication by providing features like load balancing, service discovery, and security.
Key Features
- Automatic Load Balancing: Distributes requests across multiple instances of a service.
- Service Discovery: Dynamically discovers service instances.
- Observability: Provides detailed metrics and tracing for inter-service communication.
- Security: Enables mutual TLS for secure communication between services.
Pros
- Decouples networking logic from business logic.
- Rich feature set for observability and security.
- Can be managed independently of application code.
Cons
- Adds operational complexity.
- Requires additional resources to manage the service mesh infrastructure.
xDS (eXtensible Discovery Service)

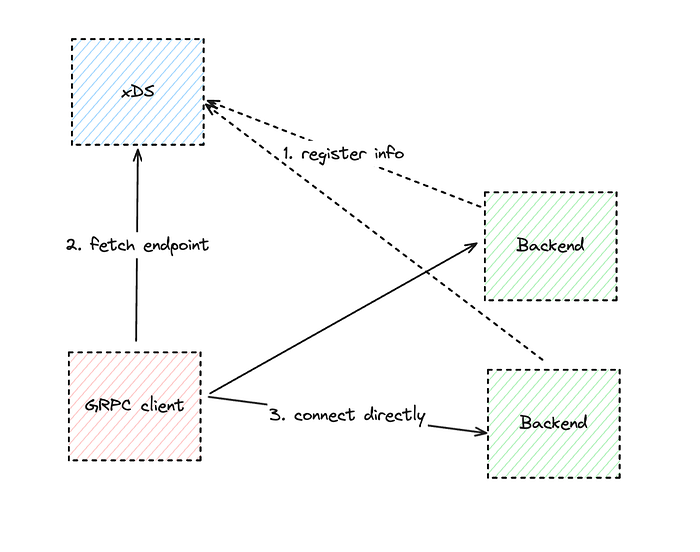

xDS is a set of APIs that enable dynamic configuration of proxies and load balancers. Initially developed by the Envoy project, xDS allows gRPC clients to discover backend services and manage configurations dynamically.
xDS is responsible for continuously monitoring backend servers and notifying clients of any changes, ensuring that the clients always have up-to-date information about available services.
Key Features
- Dynamic Configuration: Allows dynamic updates to routing, clusters, and endpoints.
- Advanced Load Balancing: Supports sophisticated load balancing strategies.
- Scalability: Easily adapts to changes in service topology.
Pros
- Highly dynamic and flexible.
- Supports advanced load balancing algorithms.
- Integrates seamlessly with gRPC.
Cons
- Requires a control plane for managing configurations.
- May introduce complexity in setup and management.

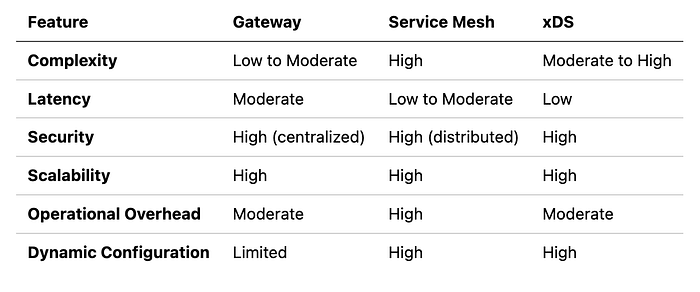

Comparing the Methods
Mastering Dynamic gRPC Load Balancing with xDS in Go: A Step-by-Step Guide
Given its flexibility and advanced features, xDS is a powerful choice for gRPC load balancing. Let’s dive into how to implement xDS load balancing using Go, including setting up a control plane and a client example.
Implementing a Simple xDS Control Plane in Go
First, we need to set up a simple gRPC server that serves xDS APIs to provide configurations for listeners, clusters, and endpoints.
Step 1: Define the Control Plane
Create a new Go project and initialize it:
mkdir xds-control-plane
cd xds-control-plane
go mod init xds-control-planeAdd necessary dependencies:
go get google.golang.org/grpc
go get github.com/envoyproxy/go-control-planeStep 2: Implement the Control Plane
Create a file named control_plane.go:
package main
import (
"context"
"log"
"net"
"os"
"os/signal"
"syscall"
"time"
"github.com/envoyproxy/go-control-plane/pkg/cache/v3"
"github.com/envoyproxy/go-control-plane/pkg/server/v3"
"github.com/envoyproxy/go-control-plane/pkg/resource/v3"
discovery "github.com/envoyproxy/go-control-plane/envoy/service/discovery/v3"
endpoint "github.com/envoyproxy/go-control-plane/envoy/config/endpoint/v3"
cluster "github.com/envoyproxy/go-control-plane/envoy/config/cluster/v3"
listener "github.com/envoyproxy/go-control-plane/envoy/config/listener/v3"
http_connection_manager "github.com/envoyproxy/go-control-plane/envoy/extensions/filters/network/http_connection_manager/v3"
route "github.com/envoyproxy/go-control-plane/envoy/config/route/v3"
address "github.com/envoyproxy/go-control-plane/envoy/config/core/v3"
"google.golang.org/grpc"
ptypes "github.com/golang/protobuf/ptypes"
)
type xdsServer struct {
cache cache.SnapshotCache
}
func (s *xdsServer) StreamAggregatedResources(stream discovery.AggregatedDiscoveryService_StreamAggregatedResourcesServer) error {
return s.cache.Stream(stream, nil)
}
func (s *xdsServer) DeltaAggregatedResources(stream discovery.AggregatedDiscoveryService_DeltaAggregatedResourcesServer) error {
return s.cache.Stream(stream, nil)
}
func (s *xdsServer) FetchAggregatedResources(ctx context.Context, req *discovery.DiscoveryRequest) (*discovery.DiscoveryResponse, error) {
return s.cache.Fetch(ctx, req)
}
func main() {
// Create a snapshot cache
cache := cache.NewSnapshotCache(true, cache.IDHash{}, nil)
server := server.NewServer(context.Background(), cache, nil)
// Create the xDS server
grpcServer := grpc.NewServer()
discovery.RegisterAggregatedDiscoveryServiceServer(grpcServer, &xdsServer{cache: cache})
lis, err := net.Listen("tcp", ":18000")
if err != nil {
log.Fatalf("Failed to listen: %v", err)
}
// Channel to listen for interrupt or terminate signals from the OS
signalChannel := make(chan os.Signal, 1)
signal.Notify(signalChannel, os.Interrupt, syscall.SIGTERM)
// Channel to signal server shutdown
shutdownChannel := make(chan struct{})
go func() {
log.Println("xDS server listening on :18000")
if err := grpcServer.Serve(lis); err != nil {
log.Fatalf("Failed to serve: %v", err)
}
}()
go func() {
<-signalChannel
log.Println("Received shutdown signal, shutting down gracefully...")
grpcServer.GracefulStop()
close(shutdownChannel)
}()
// Define cluster and endpoints
endpoints := []cache.Resource{
&endpoint.ClusterLoadAssignment{
ClusterName: "service_cluster",
Endpoints: []*endpoint.LocalityLbEndpoints{
{
LbEndpoints: []*endpoint.LbEndpoint{
{
HostIdentifier: &endpoint.LbEndpoint_Endpoint{
Endpoint: &endpoint.Endpoint{
Address: &address.Address{
Address: &address.Address_SocketAddress{
SocketAddress: &address.SocketAddress{
Address: "127.0.0.1",
PortValue: 50051,
},
},
},
},
},
},
{
HostIdentifier: &endpoint.LbEndpoint_Endpoint{
Endpoint: &endpoint.Endpoint{
Address: &address.Address{
Address: &address.Address_SocketAddress{
SocketAddress: &address.SocketAddress{
Address: "127.0.0.2",
PortValue: 50052,
},
},
},
},
},
},
},
},
},
},
}
// Define clusters
clusters := []cache.Resource{
&cluster.Cluster{
Name: "service_cluster",
ConnectTimeout: ptypes.DurationProto(5 * time.Second),
ClusterDiscoveryType: &cluster.Cluster_Type{Type: cluster.Cluster_STRICT_DNS},
LbPolicy: cluster.Cluster_ROUND_ROBIN,
},
}
// Define listeners
listeners := []cache.Resource{
&listener.Listener{
Name: "listener_0",
Address: &address.Address{
Address: &address.Address_SocketAddress{
SocketAddress: &address.SocketAddress{
Address: "0.0.0.0",
PortValue: 8080,
},
},
},
FilterChains: []*listener.FilterChain{
{
Filters: []*listener.Filter{
{
Name: "envoy.filters.network.http_connection_manager",
ConfigType: &listener.Filter_TypedConfig{
TypedConfig: ptypes.MarshalAny(&http_connection_manager.HttpConnectionManager{
StatPrefix: "ingress_http",
RouteSpecifier: &http_connection_manager.HttpConnectionManager_RouteConfig{
RouteConfig: &route.RouteConfiguration{
Name: "local_route",
VirtualHosts: []*route.VirtualHost{
{
Name: "local_service",
Domains: []string{"*"},
Routes: []*route.Route{
{
Match: &route.RouteMatch{
PathSpecifier: &route.RouteMatch_Prefix{
Prefix: "/",
},
},
Action: &route.Route_Route{
Route: &route.RouteAction{
ClusterSpecifier: &route.RouteAction_Cluster{
Cluster: "service_cluster",
},
},
},
},
},
},
},
},
},
}),
},
},
},
},
},
},
}
// Create a snapshot version 1
snapshot := cache.NewSnapshot("1", endpoints, clusters, nil, listeners, nil, nil)
// Set Snapshot for node id 123
err = cache.SetSnapshot("123", snapshot)
if err != nil {
log.Fatalf("Failed to set snapshot: %v", err)
}
// Wait for server to shutdown gracefully
<-shutdownChannel
log.Println("Server shutdown complete")
}This code sets up a basic xDS control plane that provides configurations for listeners, clusters, and endpoints.
Step 3: Create an xDS bootstrap file
Create a file named bootstrap.json:
{
"xds_servers": [
{
"server_uri": "localhost:18000",
"channel_creds": [
{
"type": "insecure"
}
]
}
],
"node": {
"id": "123"
}
}Step 4: Create the gRPC Client
The gRPC client will use the xDS resolver to discover backend services dynamically. Create a file named client.go:
package main
import (
"context"
"log"
"time"
"google.golang.org/grpc"
_ "google.golang.org/grpc/xds" // Import xDS resolver
pb "path/to/your/proto" // Import your generated protobuf code
)
func main() {
// Initialize xDS bootstrap from file
xdsConfigPath := "path/to/bootstrap.json"
grpc.WithDefaultServiceConfig(xdsConfigPath)
// Create a channel using the xDS resolver
conn, err := grpc.Dial("xds:///service_cluster", grpc.WithInsecure(), grpc.WithResolvers())
if err != nil {
log.Fatalf("Failed to dial: %v", err)
}
defer conn.Close()
// Create a stub (client) to make requests
client := pb.NewYourServiceClient(conn)
// Make a call
ctx, cancel := context.WithTimeout(context.Background(), 10*time.Second)
defer cancel()
req := &pb.YourRequestMessage{}
resp, err := client.YourRpcMethod(ctx, req)
if err != nil {
log.Fatalf("Failed to call YourRpcMethod: %v", err)
}
log.Printf("Response: %v", resp)
}Note: These code examples need to be modified to enable xDS to monitor backend servers and notify clients of any changes in real-time
Conclusion
By implementing a simple xDS control plane in Go, you gain fine-grained control over your gRPC load balancing and service discovery mechanisms. This approach allows you to dynamically configure and manage your microservices architecture efficiently.
Benefits of xDS Load Balancing
- Dynamic Configuration: Quickly adapt to changes in your service topology.
- Advanced Load Balancing: Utilize sophisticated load balancing algorithms.
- Resilience and Observability: Enhance your service resilience and gain insights into service performance.
Implementing xDS in Go provides a flexible and robust solution for managing gRPC services in a microservices environment. With this setup, you can ensure high availability and performance for your applications.
